Products Name:
Ball Valve ( Full Bore 1000WOG 1/4
Products Number:
KDG-304

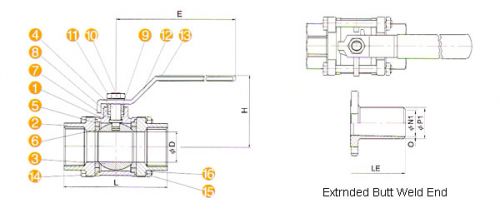

DIMENSIONS (mm)
SIZE
?O
E
F
H
S
L
L1
LE
?N
?N1
O
?P
?P1
RT
1/ 4"
11.6
103
3.6
54
11
59
61
223
11.6
11.6
1
12.5
15
14.2
3/ 8"
12.5
103
2
54
11
59
61
223
12.5
14
1
14.5
17
17.7
1/ 2"
15
133
2
55
12
69
69
225
17
15.6
1
14.5
21
21.9
3/ 4"
20
133
2.6
59
14
78
78
225
22.5
20.7
1
16.5
26.8
27.2
1"
25
153
3.2
70
14
84
84
244
26
25.8
1
14.5
34.4
33.9
1-1/4"
32
153
4.05
75
15
104
104
253
34.4
33.3
1
16.5
43.4
42.7
1-1/2"
38
191
3.7
84
17
119
119
258
41.5
40.5
1
16.5
49.8
48.8
2"
50
191
4.35
92
19
131
131
275
53
51.5
1
18.5
61
61.3
2-1/2"
65
247
5.75
128
21
162
162
MATERIAL OF PARTS
NO
PART NAME
MATERIAL
QTY
1
BODY
CF8M WCB
1
2
END CAP
CF8M WCB
2
3
BALL
SUS316
1
4
STEM
SUS316
1
5
JOINT GASKET
PTFE
2
6
SEAT
PTFE
2
7
STEM SEAL
PTFE
1
8
STEM PACKING
PTFE
1
9
GLAND NUT
SUS304
1
10
WASHER
SUS304
1
11
STEM NUT
SUS304
1
12
HANDLE
SUS304
1
13
HANDLE SLEEVE
VINYL
1
14
BOLT
SUS304
15
WASHER
SUS304
16
BOLT NUT
SUS304
