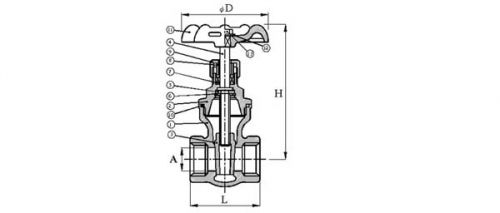

SIZE

A

L

H

D

1/ 4"

3/ 8"

1/ 2"

15

54

95

60

3/ 4"

20

58

105

70

1"

25

65

115

70

1-1/ 4"

32

74

125

80

1-1 /2"

40

78

145

90

2"

50

87

170

100

2-1/2"

3"

4"

NO

PART NAME

MATERIAL

1

BODY

CF8M

2

BONNET

CF8M

3

DISC

CF8M

4

STEM

SUS316

5

STEM WASHER

SUS316

6

SNAP WASHER

SUS316

7

STEM PACKING

TEFLON

8

SLEEVE

SUS316

9

PACKING NUT

CF8M

10

GASKET

TEFLON

11

HAND WHEEL

CASTIRON

12

PLATE

ALUMINUM

13

WHEEL NUT

SUS316
