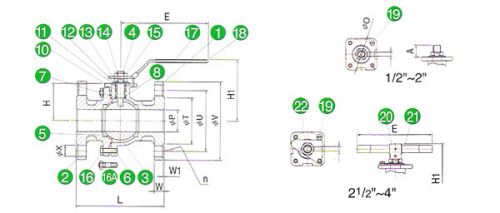

序號

零件名稱

材質

數量

1

BODY

CF8M WCB

1

2

END CAP

CF8M WCB

1

3

BALL

SUS316

1

4

STEM

SUS316

1

5

BODY SEAT

PTFE

1

6

SEAT

PTFE

2

7

LOWER THRUST WASHER

50%SS/50%PTFE

1

8

COMPRESS RING

SUS316

1

9

UPPER THRUST WASHER

TFM1600

1

10

V-RING PACKING

PTFE

1 SET

11

BUSHING

50%SS/50%PTFE

1

12

GLAND

SUS304

1

13

BELLEVILLE WASHER

SUS301

2

14

LOCK SADDLE

SUS304

1

15

STEM NUT

SUS304

2

16

BOLT (1/2"~2")

SUS304

4

16A

STUD & NUT (2-1/2"~4")

SUS304

6-8

17

HANDLE (1/2"~2")

SUS304

18

HANDLE SLEEVE (1/2"~2")

VINYL

19

STOP PIN

SUS304

20

HANDLE ADAPTER (2-1/2"~4")

CF8M

21

HANDLE (1-1/2"~4")

CF8M

22

TRIANGLE STOPPER (2-1/2"~4")

SUS304
